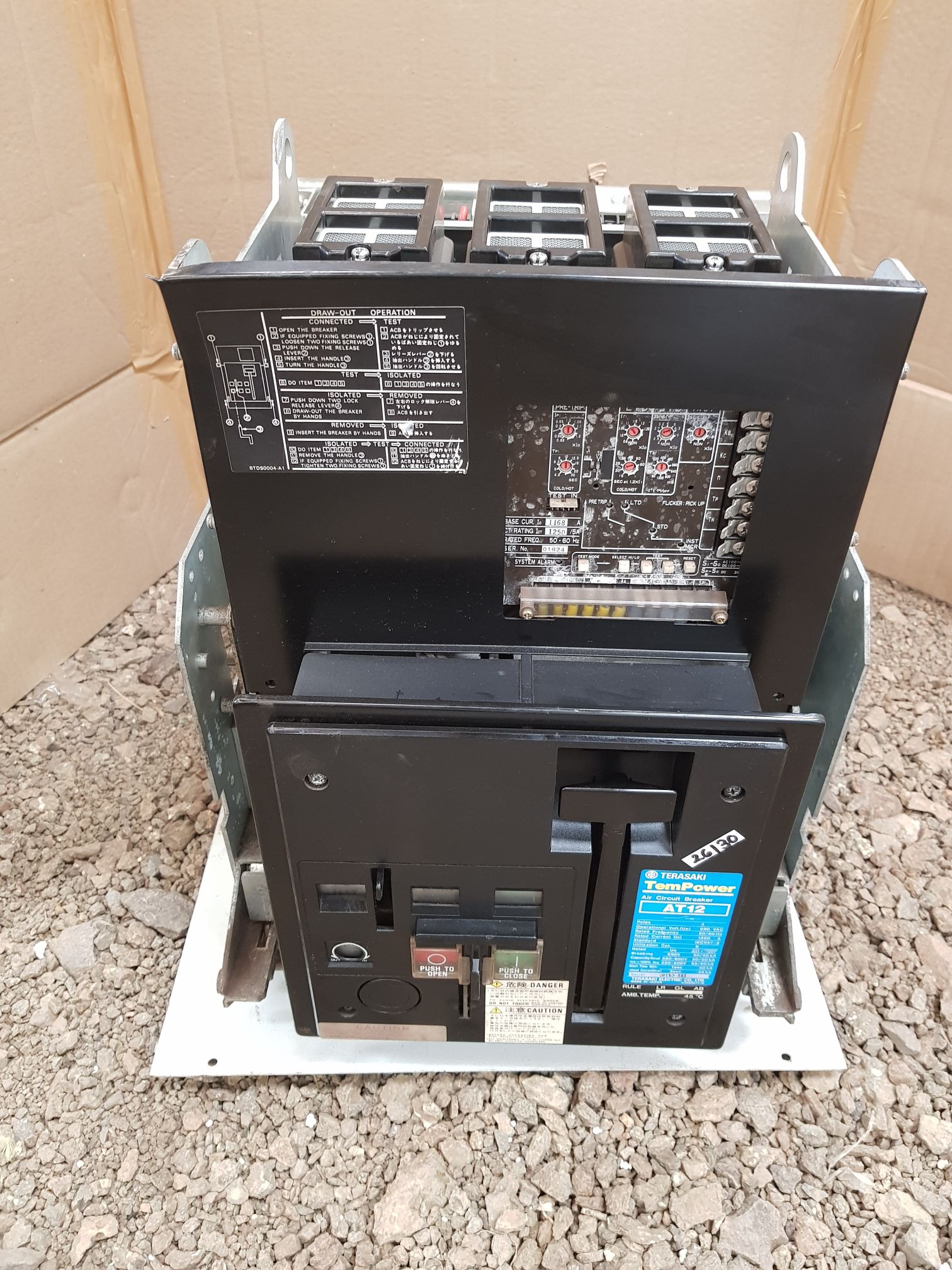

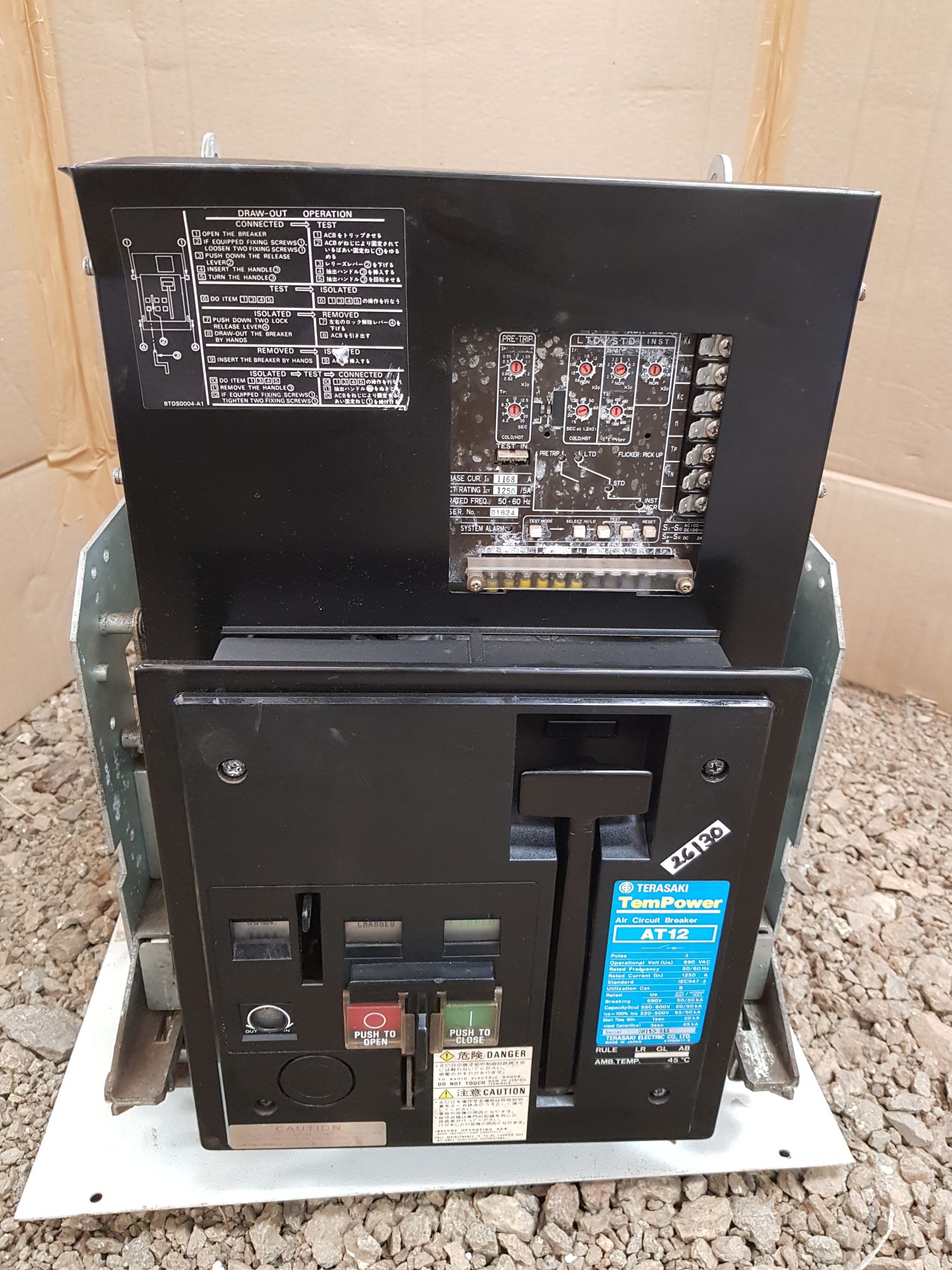

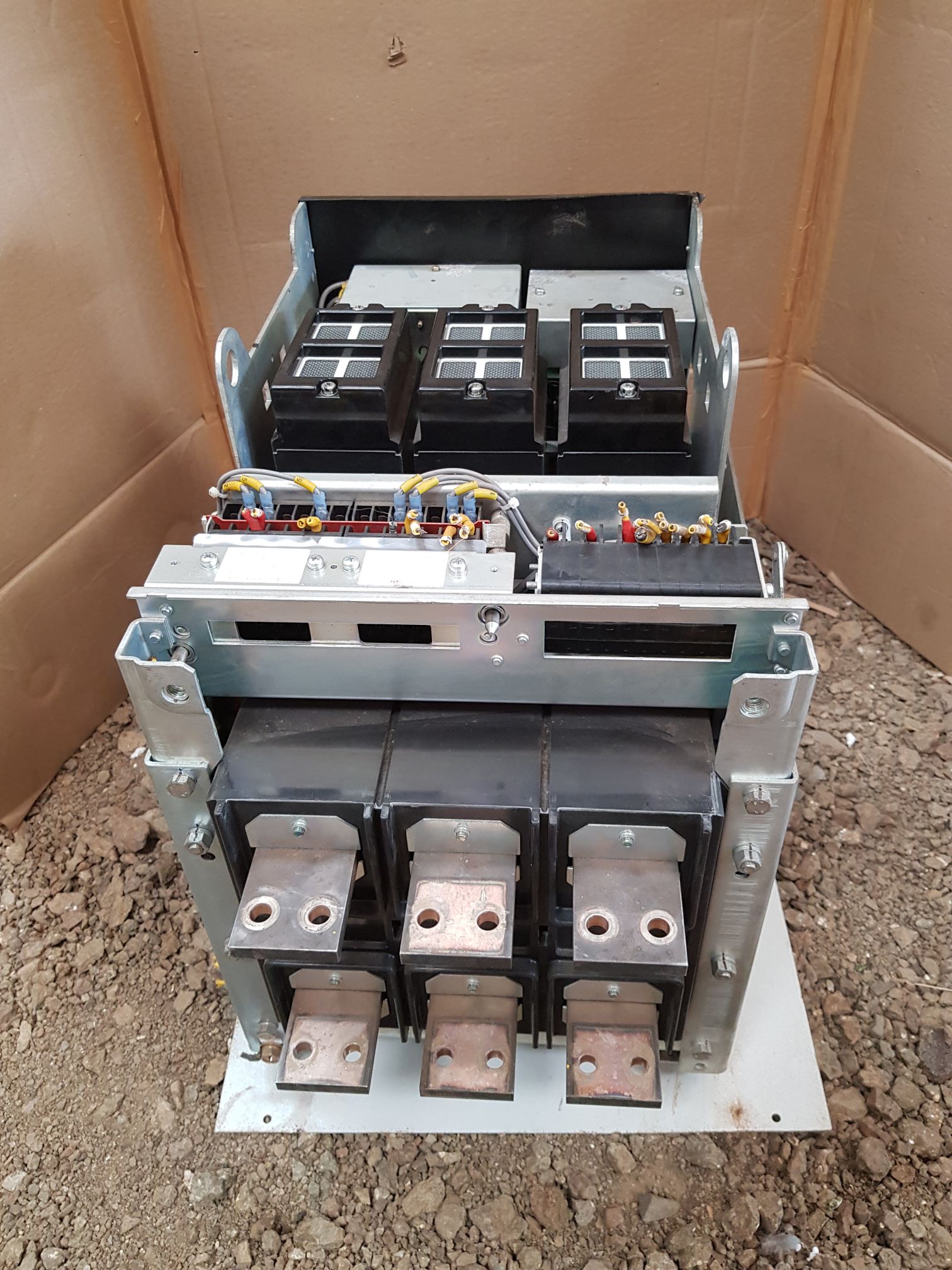

TERASAKI AT12 3 POLE AIR CIRCUIT BREAKER ATPS0017-B

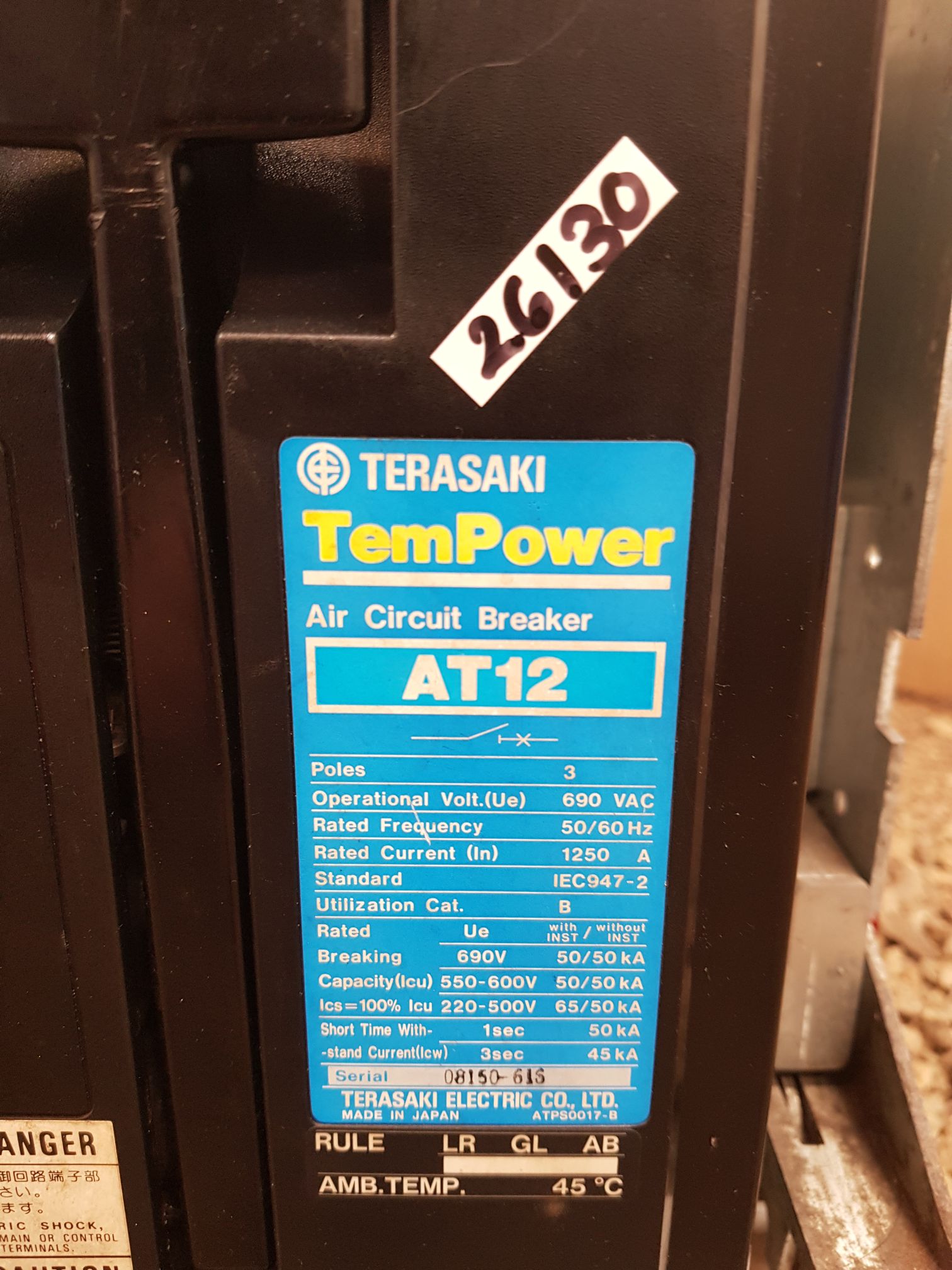

TERASAKI ELECTRIC CO., LTD.
TEMPOWER
AIR CIRCUIT BREAKER
AT12
POLES 3
OPERATIONAL VOLT. (UE) 690 VAC
RATED FREQUENCY 50/60 HZ
RATED CURRENT (IN) 1250A
STANDARD IEC947-2
UTILIZATION CAT. B
RATED BREAKING:
UE: 690V
WITH INST/ WITHOUT INST: 50/50KA
CAPACITY (ICU)
UE: 550-600V
WITH INST/ WITHOUT INST: 50/50 KA
ICS = 100% ICU
UE: 220-500V
WITH INST/ WITHOUT INST: 65/50 KA
SHORT TIME WITH- 1SEC 50KA
-STAND CURRENT (ICW) 3SEC 45KA
ATPS0017-B
AMB. TEMP. 45°C

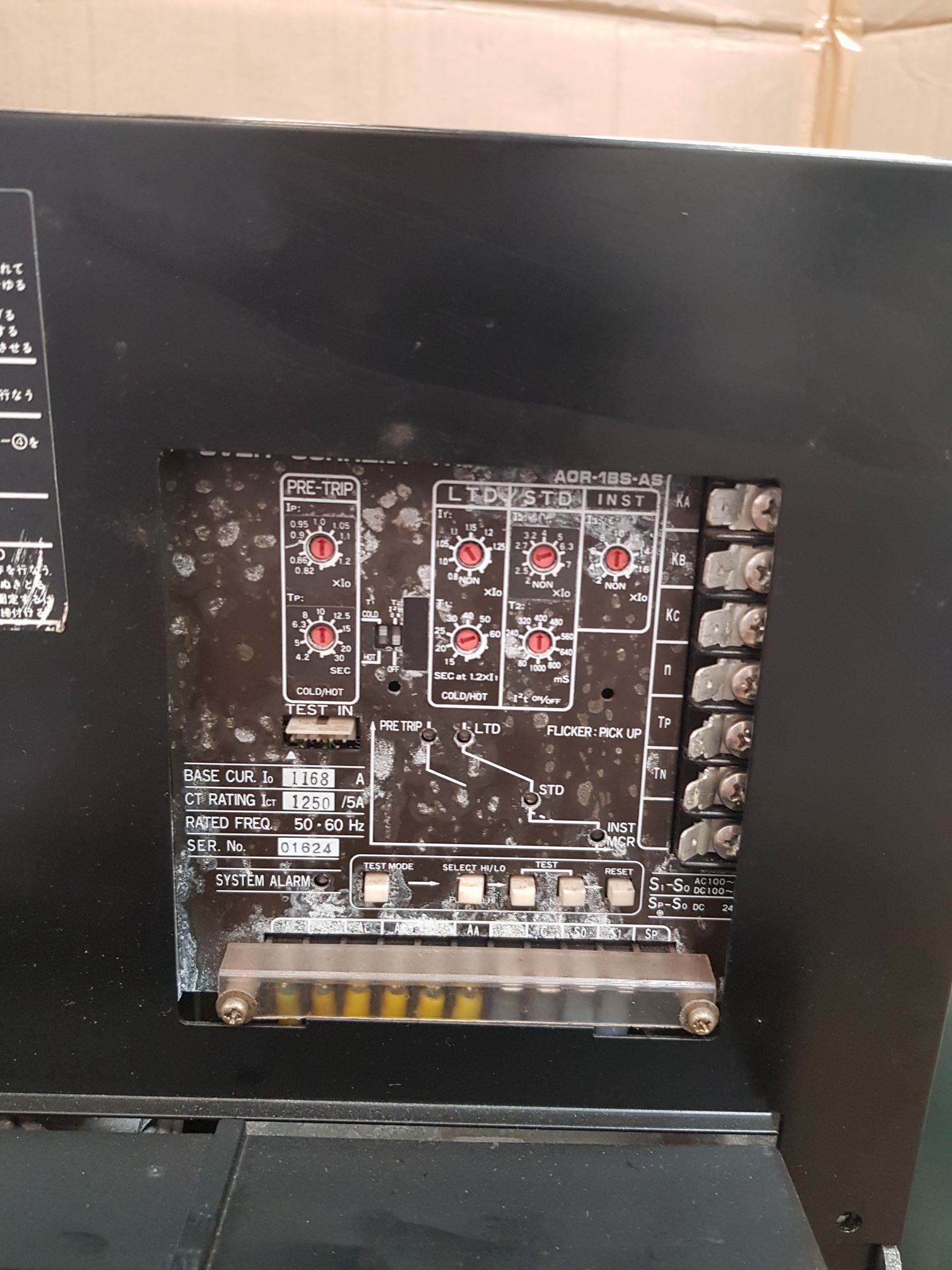

BASE CUR. IO: 1168A
CT RATING ICT: 1250/5A
RATED FREQ. 50.60 HZ
DC 24V
MADE IN JAPAN
WEIGHT: 79 KG
CONDITION : USED 1 PCS
REF NO : 26130
