ALANG – SOSIYA SHIP RECYCLING YARD
MACHINERY DETAILS NEWS 1712 JULY 2021
——————————————–

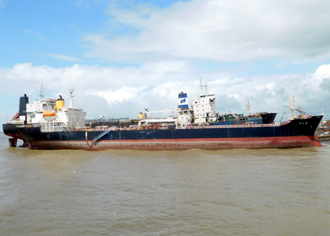

MACHINERY BEACHED AT ALANG – SOSIYA SHIP RECYCLING YARD FOR DEMOLITION PURPOSE
Main Engine
Make : Ishibras-Sulzer
Type : 5RLA56
No. Of Cylinder : 5
Cylinder Bore 560 x Stroke 1150 MM
Kw : 4650
Rpm : 155
Turbocharger
Make : ABB
Type : VTR-454
Governor
Make : Woodward
Type : PGA
Part No. : 8557-817
Rpm : 250-1225
Air Pressure : 10-58 PSI
Oil Mist Detector
Make : Graviner
Type : MK-6 (With 06 Sensor)
Air Cooler
Make : Ishikawajima Harima Heavy Ind. Co. Ltd.
Type : 1417-28-52-NSF-DDM51
Turning Gear
Make : IMT
Type : DT-1000-34A
Diesel Generators
Make : Anqing CSSC Diesel Engine Co. Ltd.-Daihatsu Diesel Engine Co. Ltd.
Type : 6DK-20e
[D.G. Set Type : CCF720J-720
No. Of Cylinder : 6
Max. Continuous Rating : 770 Kw (Ps : 1046)
Engine Speed : 720 Rpm
D.G. Turbocharger
Make : ABB
Type : TPS48-F32
Rpm : 982-1034
Temp. : 650-680 C
D.G. Governor
Make : Zexel
Type : RHD6-MC
Part No. : 105856-5580
Rpm : 600-2000
D.G. Alternator
Make : Zhenjiang China Marine Xiandai Generating Co. Ltd.
Type : HFC6 506-14K
Kva : 900
Rpm : 720
Amps : 1154.7
Volt : 450
Hz : 60
Fresh Water Generators
Make : Alfa Laval
Type : JWSP-26-C80
Cap. : 20 Ton/Day
Fresh Water Generators Salinometer Penal
Make : Alfa Laval
Type : DS-20
Oily Water Separators
Make : RWO
Type : SKIT/S DEB-2.5
Cap. : 2.5 M3/Hr.
Working Pressure : 1-3 Bar
Test Pressure : 1.5-4.5 Bar
Oily Water Separators OMD Panal
Make : Deckma Humberg Gmbh
Type : OMD-24
Art No. : 79100
Air Compressor
Make : J.P. Sauer & Sohn
Type : WP-200-100
Cap. : 200 M3/Hr
Rpm : 1770
Pressure : 25 Bar
Power Req. : 38 Kw
Air Dryer
Make : Atlas Copco Airpower N.V.,
Type : FX-5 (A4)
Comp. Air Pressure : 16 Bar(e)
Refr. Type : R-134A
Refr. Air Pressure : 17 Bar(e)
Heavy Fuel Oil Purifiers (Oil Filter)
Make : Alfa Laval
Type : MAPX-205 TGT-24-60
Worm Wheel Shaft : 1700-1800 Rpm
Revolution Counter : 142-150 Rpm
Lubricating Oil Purifiers (Oil Filter)
Make : Alfa Laval, Type : MAPX-205 TGT-24-60
Worm Wheel Shaft : 1700-1800 Rpm
Revolution Counter : 142-150 Rpm
Over Head Crane (Engine Room)
Make : Ishibras
Cap. : SWL 3 Ton
Hose Handling Deck Crane
Make : Shanghai Heng Yuan Marine Equipment Co.
Cap. : 5 Ton 5-20M
Hydraulic Power Pack
Make : Nakakita Seisakusho Co. Ltd.
Cap. : 5.6 L/Min.
Pressure : 70 Kg/Cm2
Motor Power : 1.5 Kw
Power Pack Cap. : 370 Liter
Power Pack’s Hydraulic Pump
Make : Hydromatik Gmbh
type : A2F.225-W-1-Z-6
Power Pack System’s Hydraulic Pump
Make : Hydromatik Gmbh
Type : A2F-160-R-2-P-3
