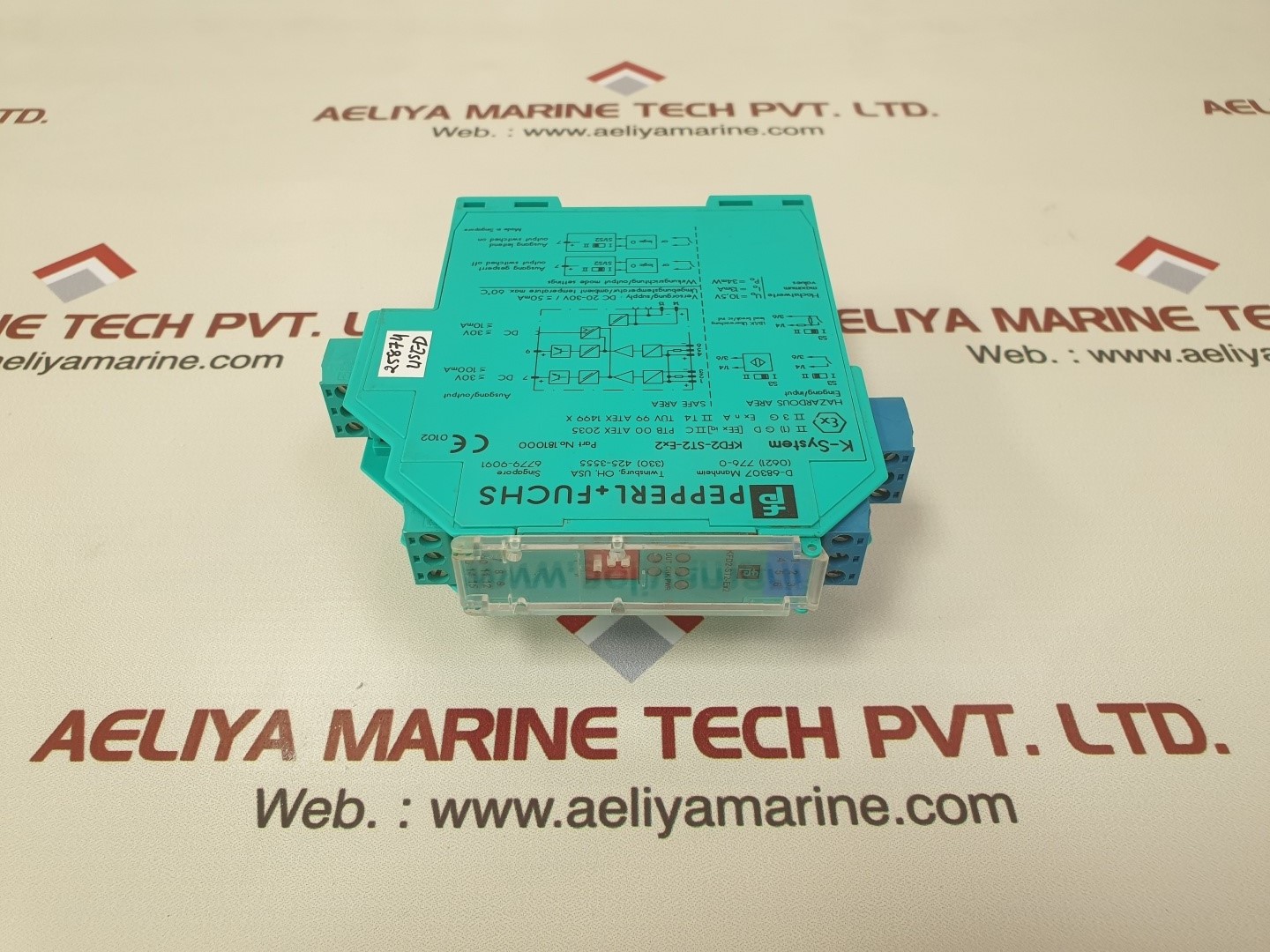

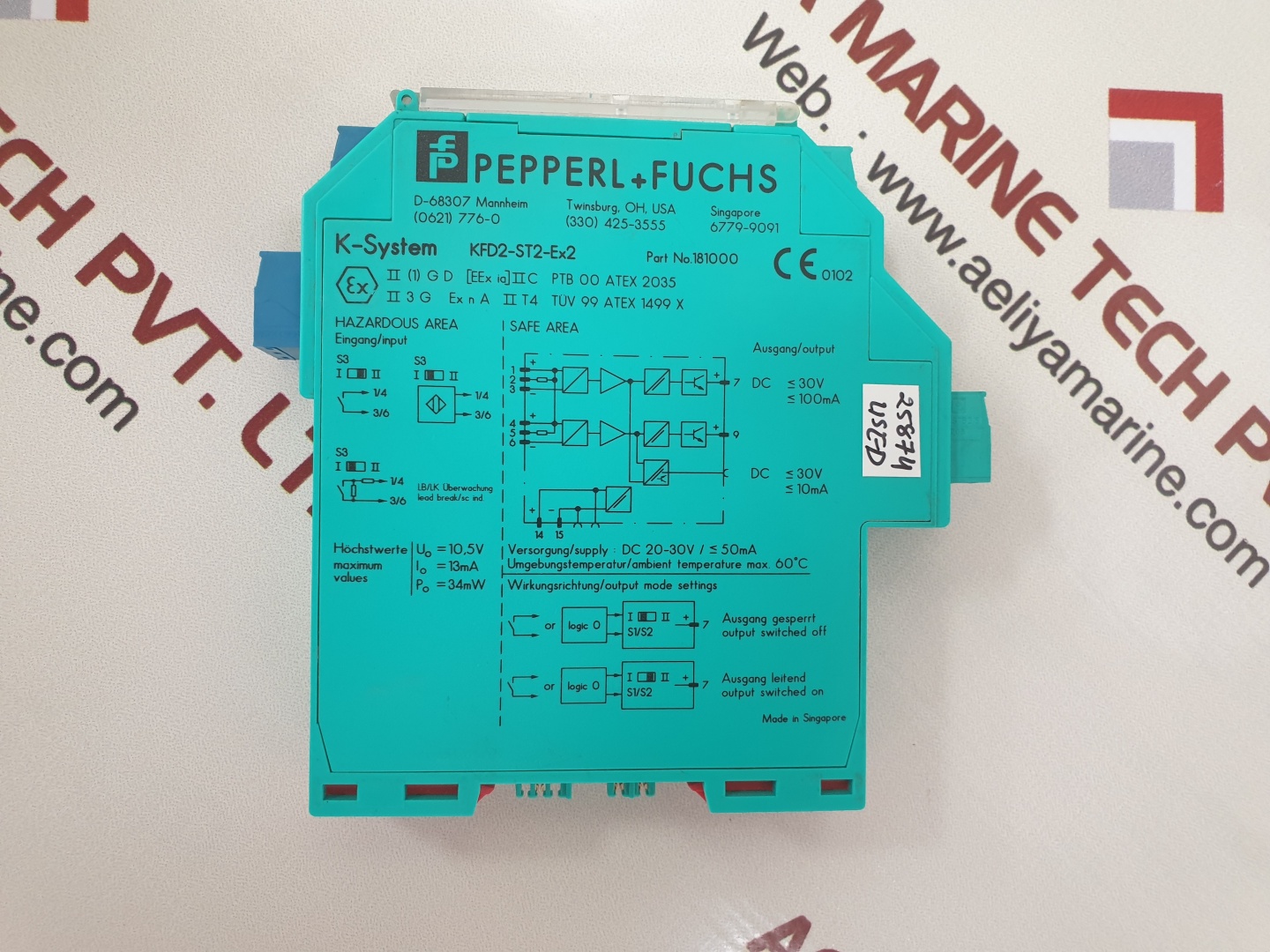

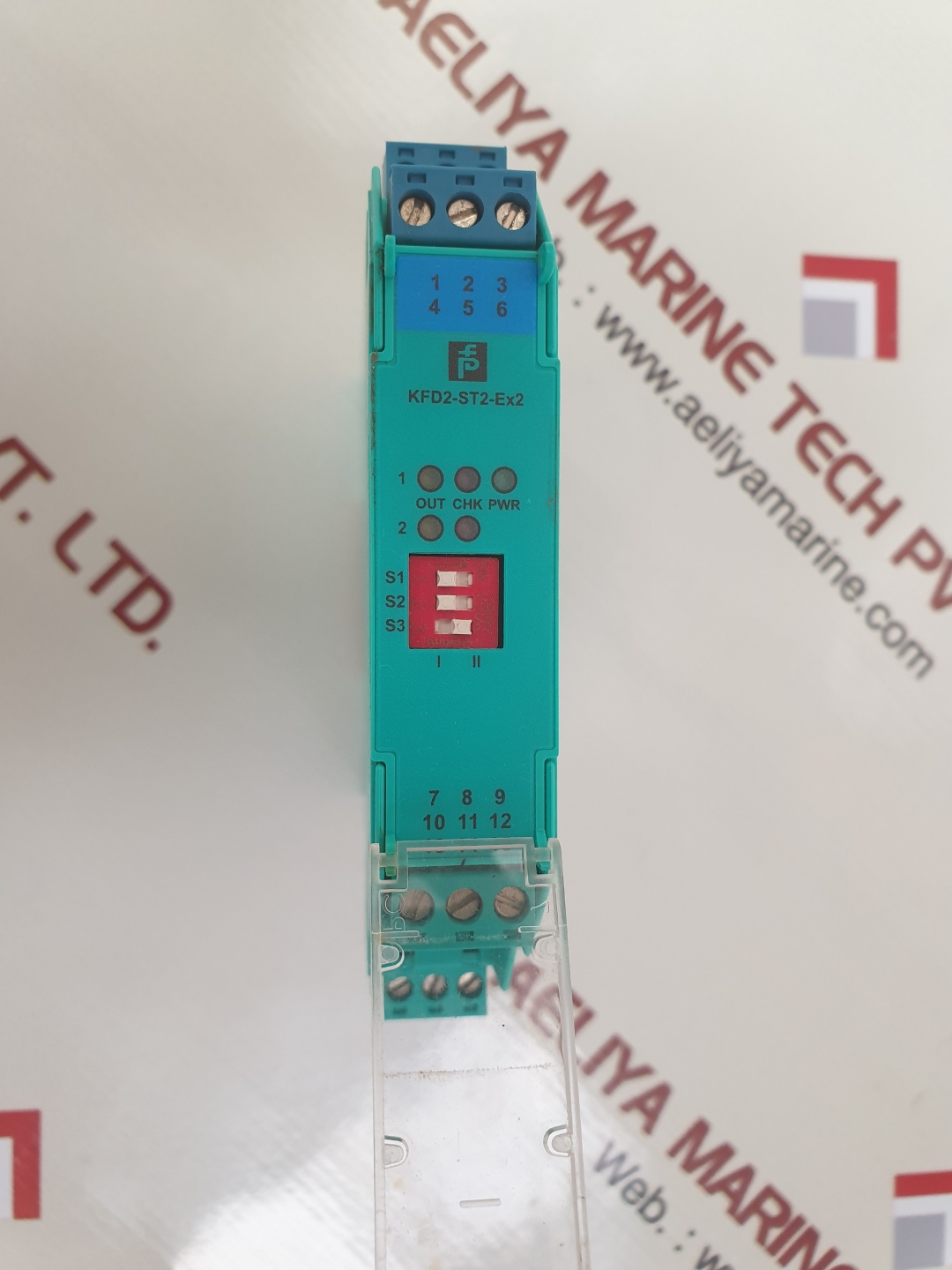

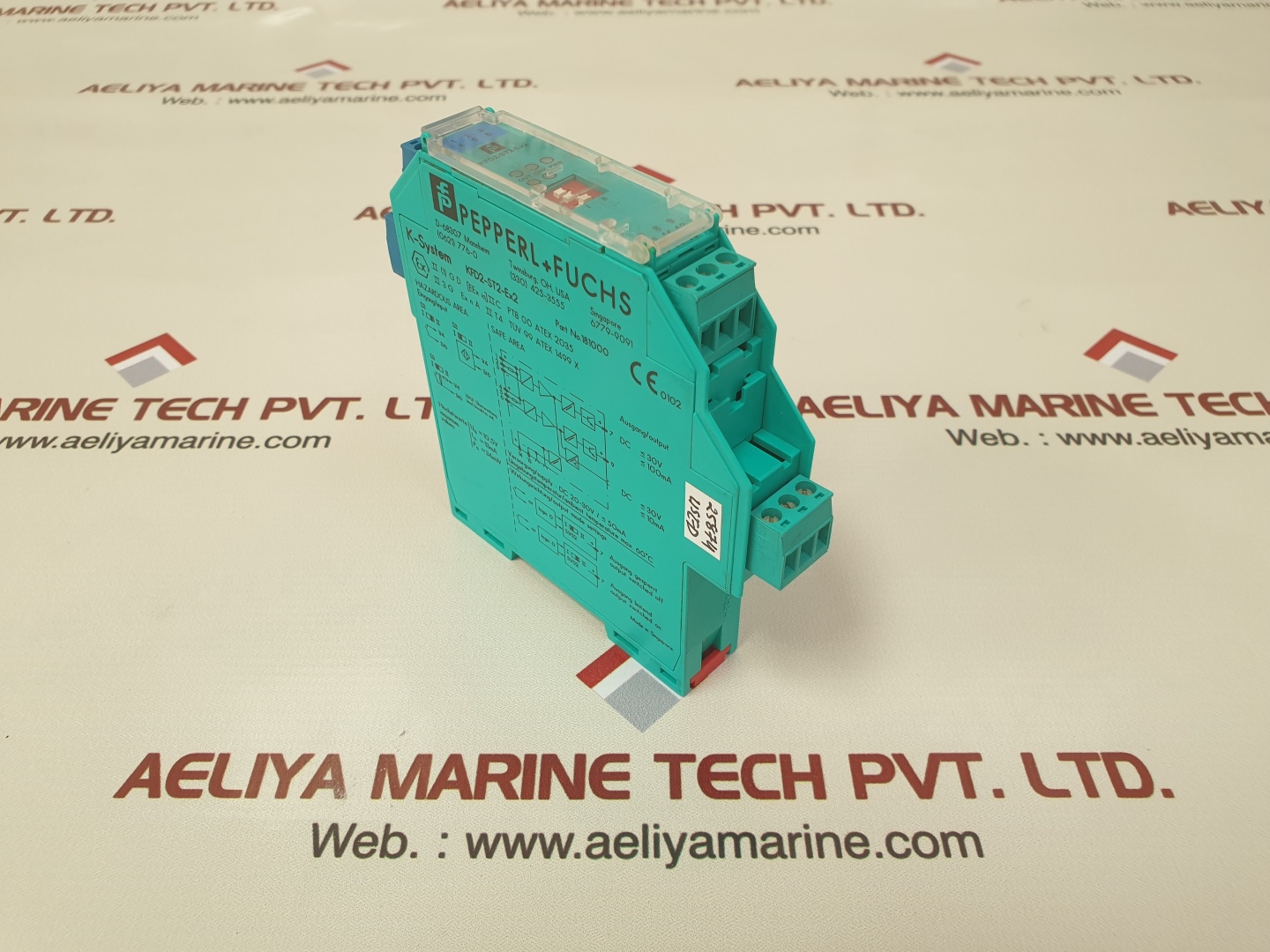

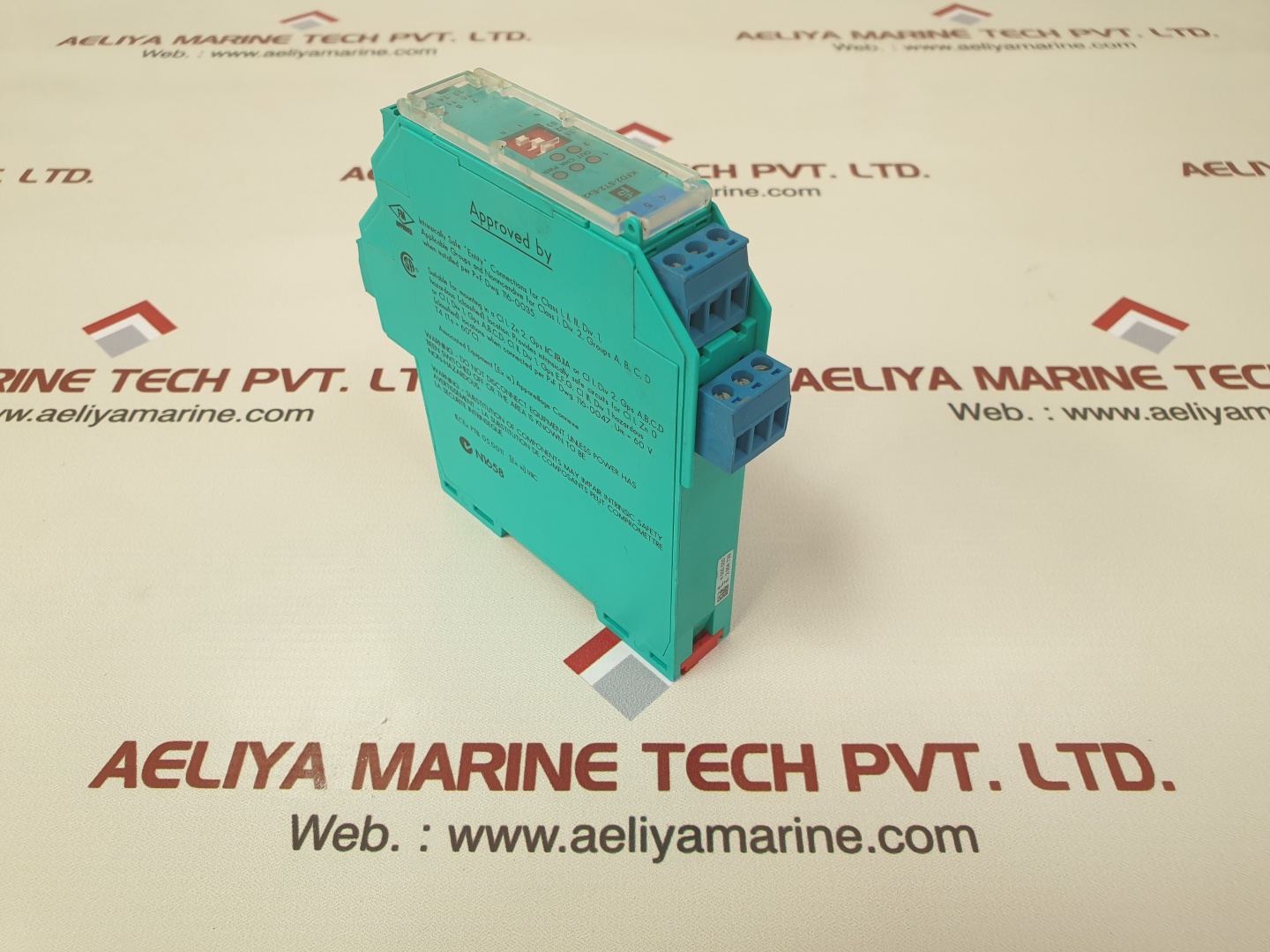

PEPPERL+FUCHS K-SYSTEM KFD2-ST2-EX2 ISOLATED BARRIER 181000
PEPPERL+FUCHS
K-SYSTEM
KFD2-ST2-EX2
PART NO. 181000
II (1) G D [EEX IA] IIC PTB 00 ATEX 2035
II 3 G EX N A II T4 TUV 99 ATEX 1499 X
AUSGANG/OUTPUT
DC 30V 100MA
DC 30V 10MA
VERSORGUNG/SUPPLY: DC 20 – 30V / 50MA
UMGEBUNGSTEMPERATUR/AMBIENT TEMPERATURE MAX. 60°C
HOCHSTWERTE/MAXIMUM VALUES
UO = 10,5 V
IO = 13MA
PO = 34 MW

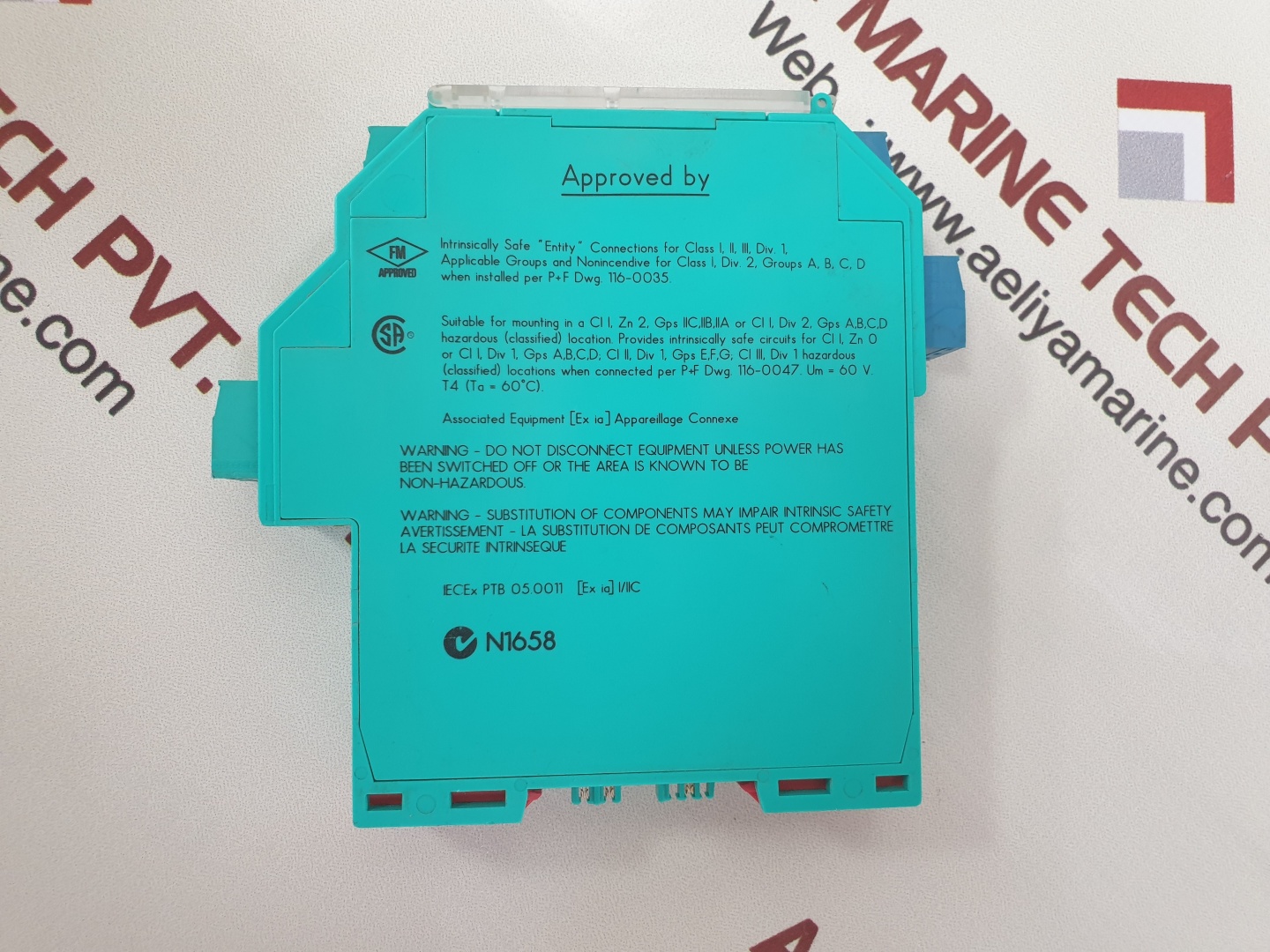

CI I, ZN 2, GPS IIC,IIB,IIA OR CI I,DIV 2, GPS A,B,C,D
CI I, ZN O OR CI I, DIV 1, GPS A,B,C,D, CI II, DIV 1, GPS E,F,G, CI III, DIV 1
UM = 60 V.
T4 (TA = 60°C)
MADE IN SINGAPORE
WEIGHT : 200 GM
CONDITION : USED 8 PCS
REF NO : 25874
