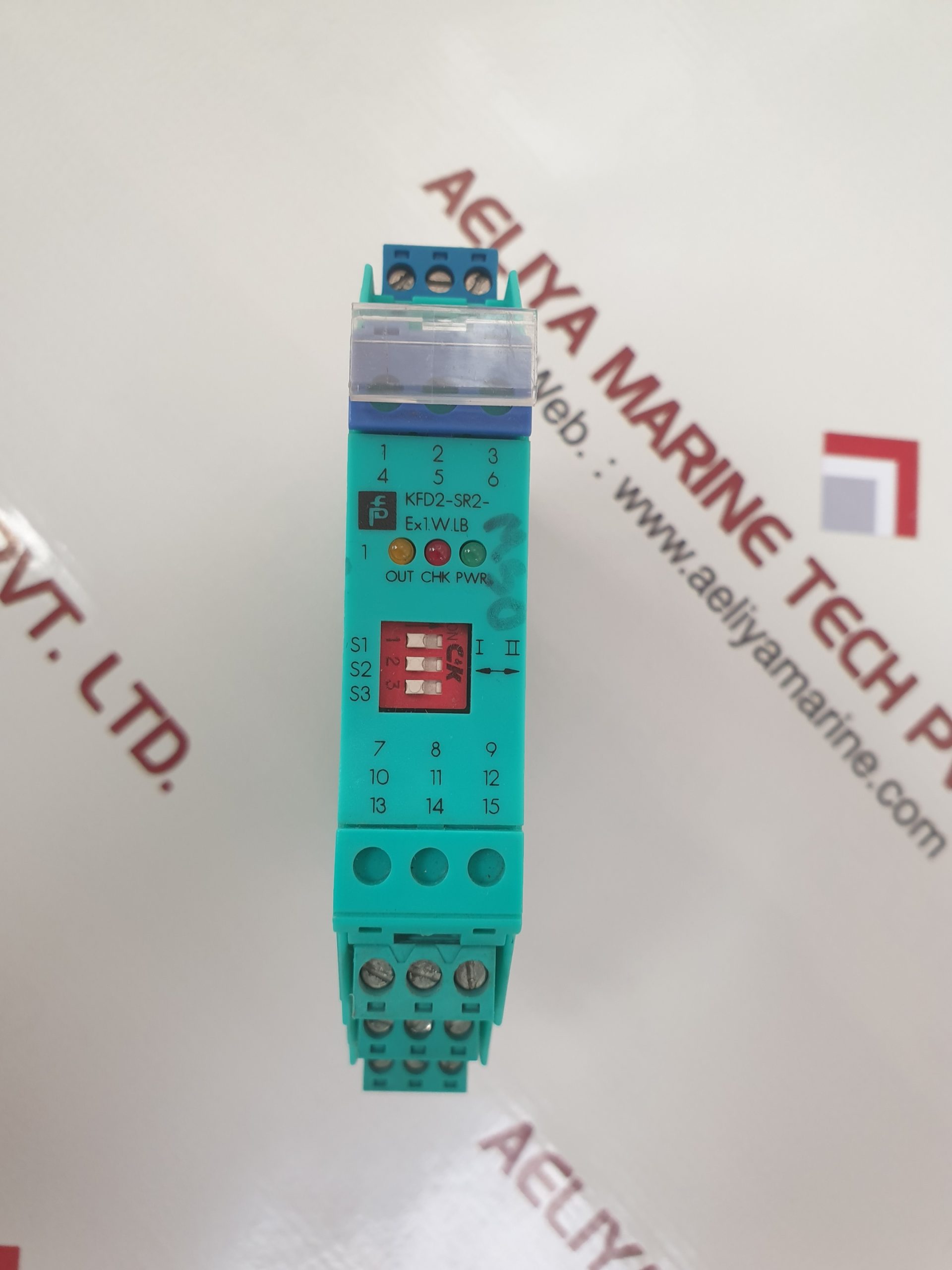

PEPPERL+FUCHS K-SYSTEM KFD2-SR2-EX1.WLB ISOLATED BARRIER 37373S
PEPPERL+FUCHS
KFD2-SR2-EX1.W.LB
K-SYSTEM
PART.NO:.37373S
PTB NR.EX-94.C.2086 [EEX IA] IIC
AUSGANG/OUTPUT
AC 253V 2A
P.F. 07
DC 40V 2A
NETZ-NENNSP.G/SUPPLY VOLTAGE: DC 20 – 30V/UM = 40V
NENNSTROM/CURRENT CONSUMPTION: 35 – 40MA
UMGEBUNGSTEMPERATUR/AMBIENT TEMPERATURE MAX. 60 C
HOCHSTWERTE/ MAXIMUM VALUES
UO = 10.5V
JK = 13 MA
P = 34MW
EEX IA IIC CA = 620NF
LA = 3MH
CLASS I, DIV. 1, GROUPS A,B,C,D,
CLASS II, DIV 1, GROUPS E,F,G; CLASS III, DIV 1.
GENERATED VOLTAGE LESS THAN 250
MADE IN SINGAPORE
WEIGHT : 200 GM
CONDITION : USED 12 PCS
REF NO : 25871
