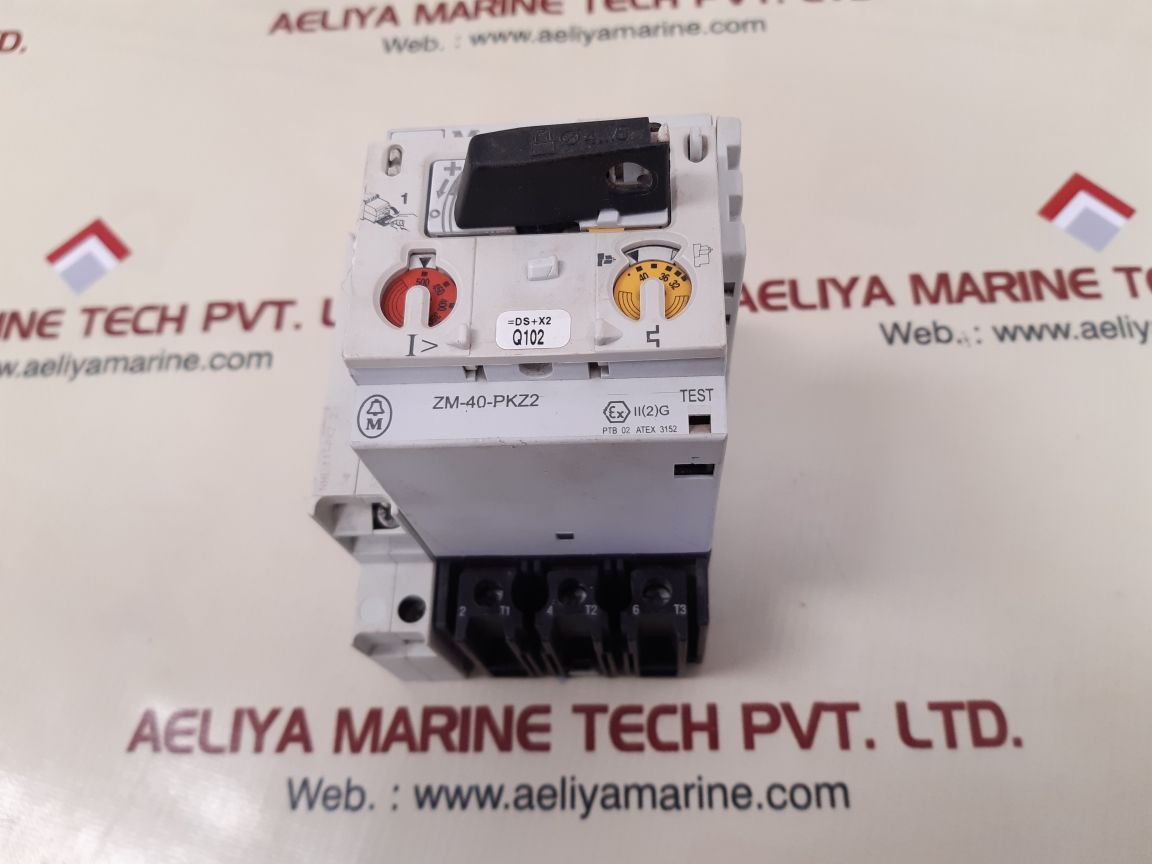

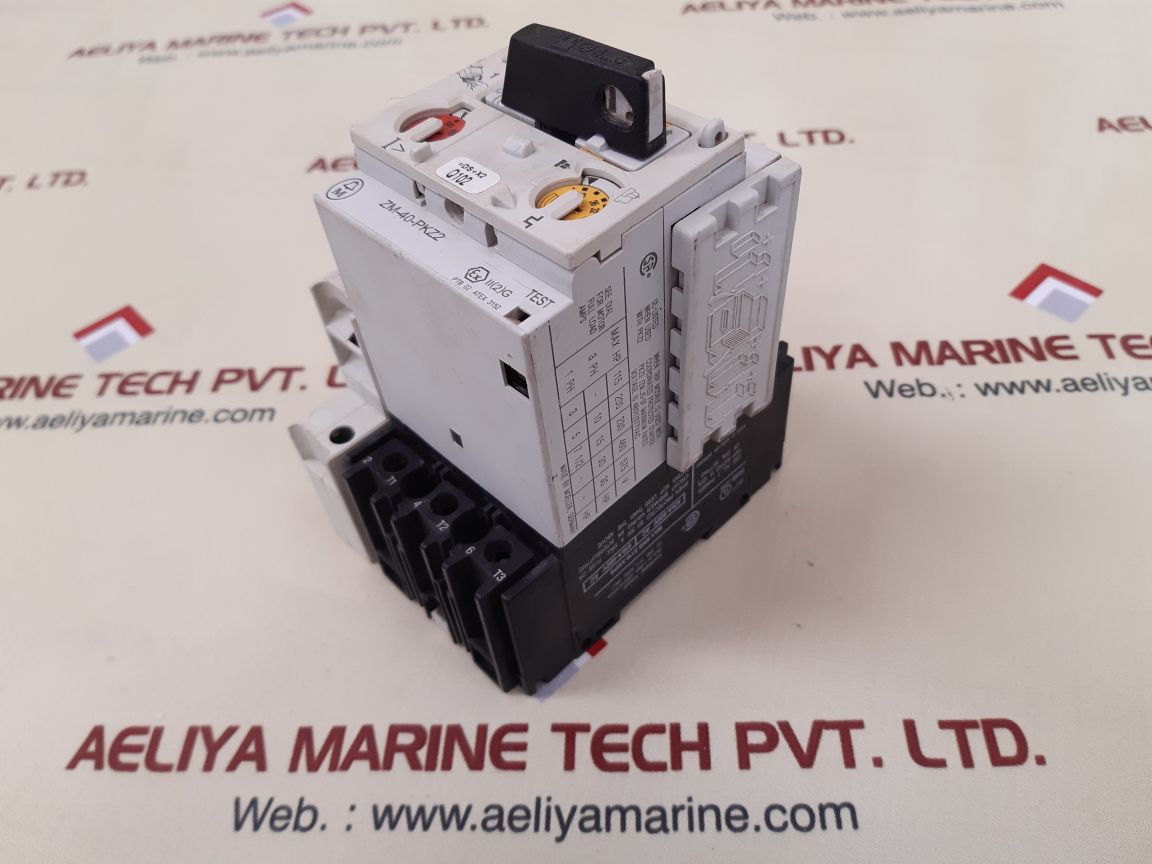

MOELLER ZM-40-PKZ2 MOTOR PROTECTOR
MOELLER
PKZ 2
=DS+X2 Q102
ZM-40-PKZ2
II (2)G
PTB 02 ATEX 3152
TIGHTENING TORQUE
16LB.-IN./1.8NM AWG14-AWG6
CU AND 75°C WIRE ONLY
USE ALL 3 PHASES, TRIP RATING IS 125% OF DIAL SETTING
MAX RMS SYM AMPS
42KA-600V AC
65KA-480V AC
WHEN PROTECTED BY 500 A MAX.
UIMP= 6000 V
IE= 0,6-40 A
50/60 HZ
IEC/EN 60947
GB 14048.2
50 HZ
ITH= 6A/40°C
IEC 947
EN 60947
VDE 0660
5 A – 600 V AC
10 A – 300 V AC
0.5 A – 250 V DC
A 600 R 300
AWG 18-14
TIGHTENING TORQUE
1 NM/9 LBS IN
MADE BY MOELLER, GERMANY
WEIGHT : 810 GM
CONDITION : USED 1 PCS
REF NO : 20511
