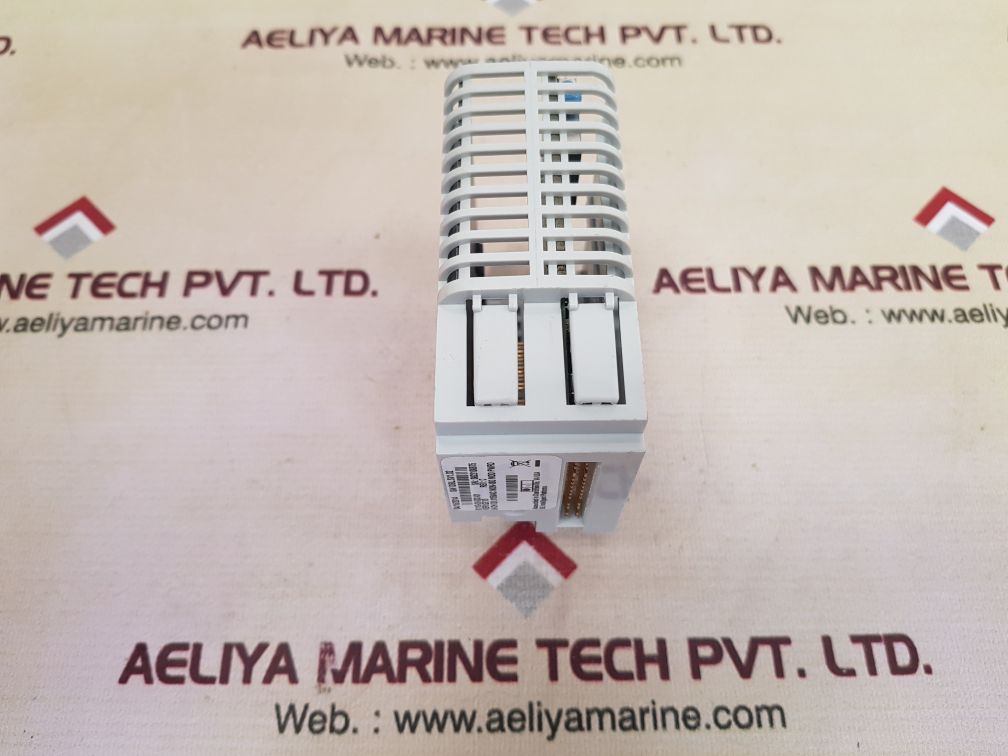

GE INTELLIGENT DI8L.SV1.02 NON-ISOLATED MODULE-POWERED REV: C

GE INTELLIGENT DI8L.SV1.02 NON-ISOLATED MODULE-POWERED REV: C

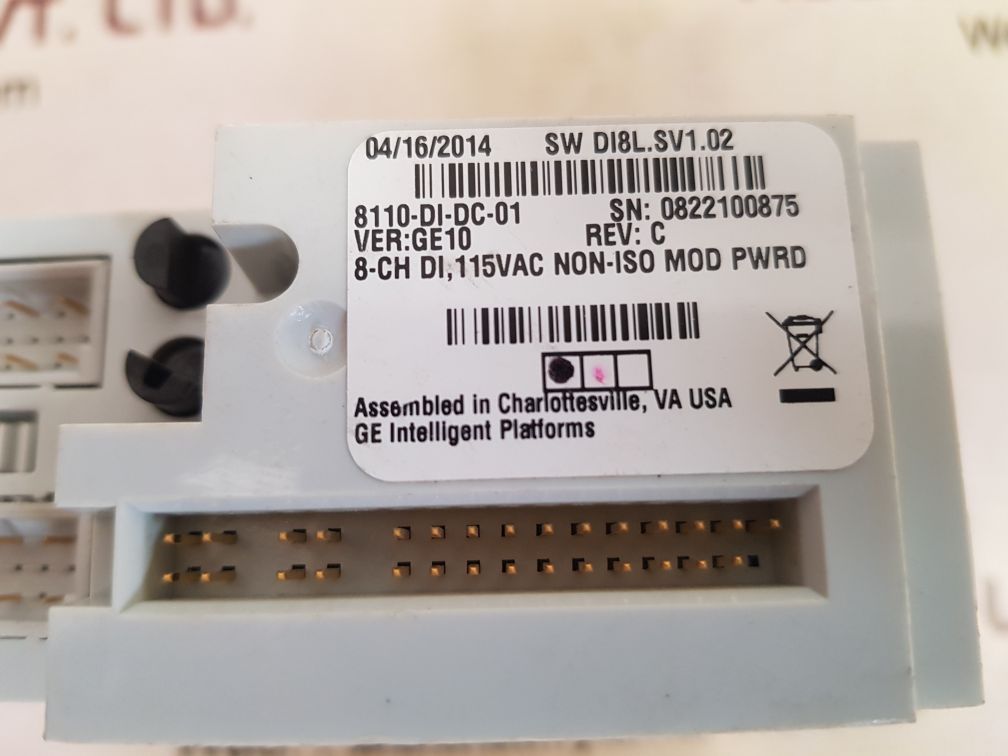

GE INTELLIGENT DI8L.SV1.02
GE INTELLIGENT PLATFORMS
8110-DI-DC-01
SW DI8L.SV1.02
VER: GE10 REV: C
8-CH DI, 115VAC NON-ISO MOD PWRD

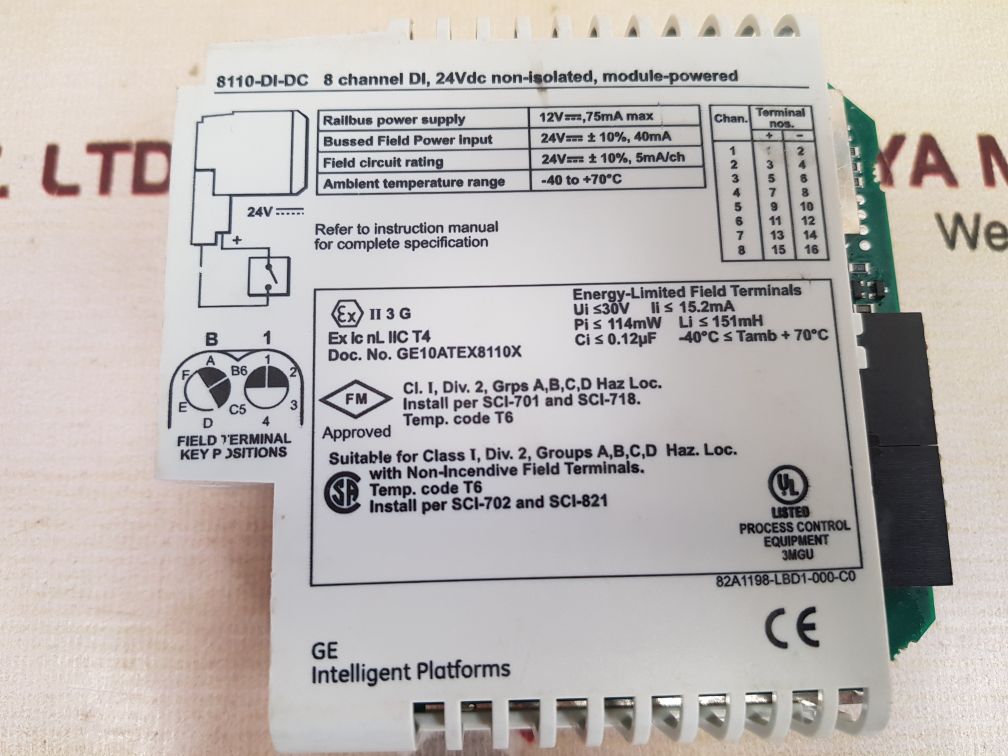

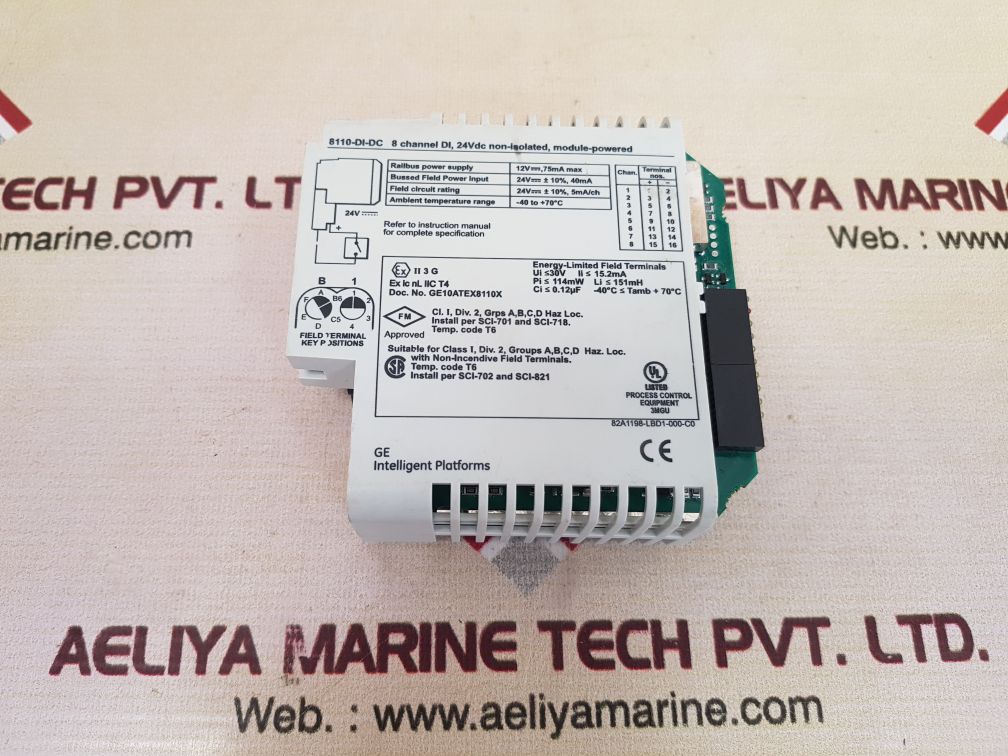

8110-DI-DC 8 CHANNEL DI,24VDC NON-ISOLATED, MODULE-POWERED
RAILBUS POWER SUPPLY: 12V—,75MA MAX
BUSSED FIELD POWER INPUT: 24V— ± 10%, 40MA
FIELD CIRCUIT RATING: 24V— ± 10%, 5MA/CH
AMBIENT TEMPERATURE RANGE: -40 TO +70°C
EX II 3 G
EX IC NL IIC T4
ENERGY-LIMITED FIELD TERMINALS
UI 30V II 15.2MA
PI 114MW LI 151MH
CI 0.12µF
CL. I, DIV. 2, GRPS A,B,C,D
INSTALL PER SCI-701 AND SCI-718.
TEMP. CODE T6
PROCESS CONTROL EQUIPMENT 3MGU
82A1198-LBD1-000-C0
ASSEMBLED IN CHARLOTTESVILLE, VA USA
WEIGHT : 160 GM
CONDITION : FOR PART 1 PCS
REF NO : 20816
