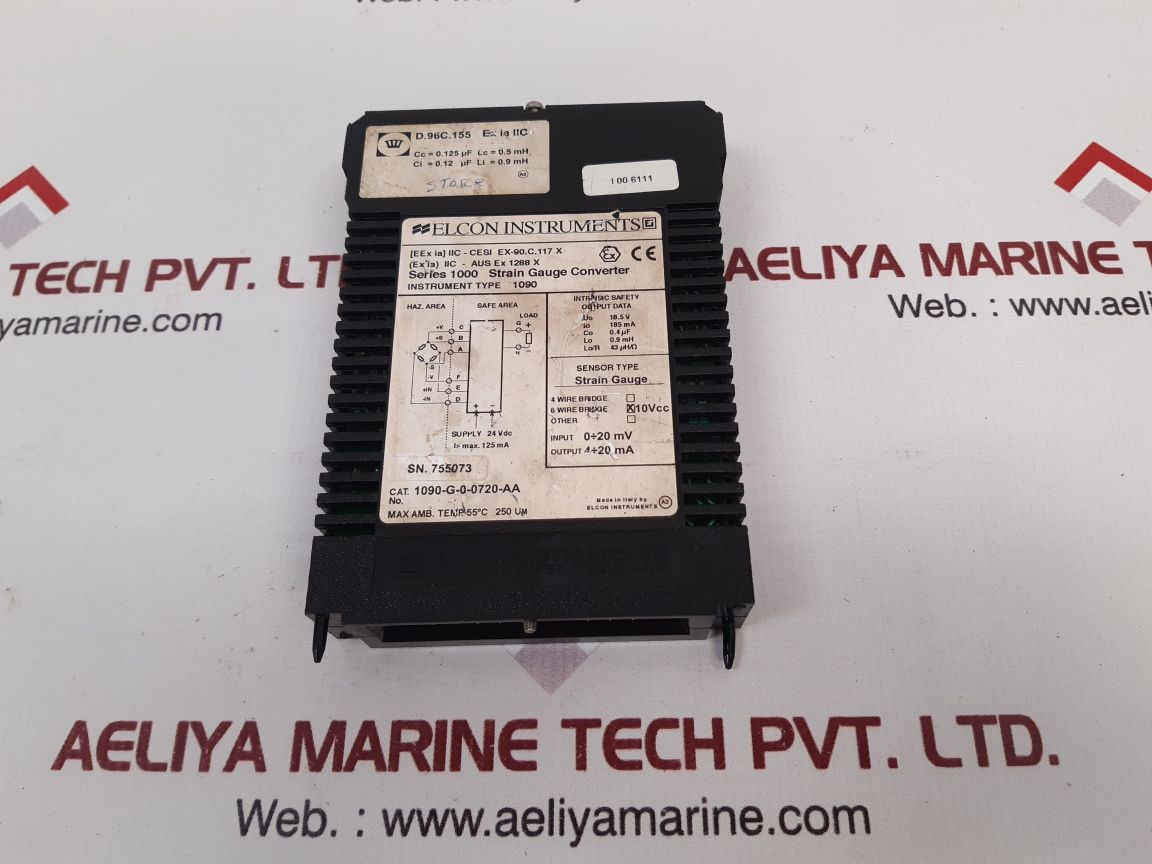

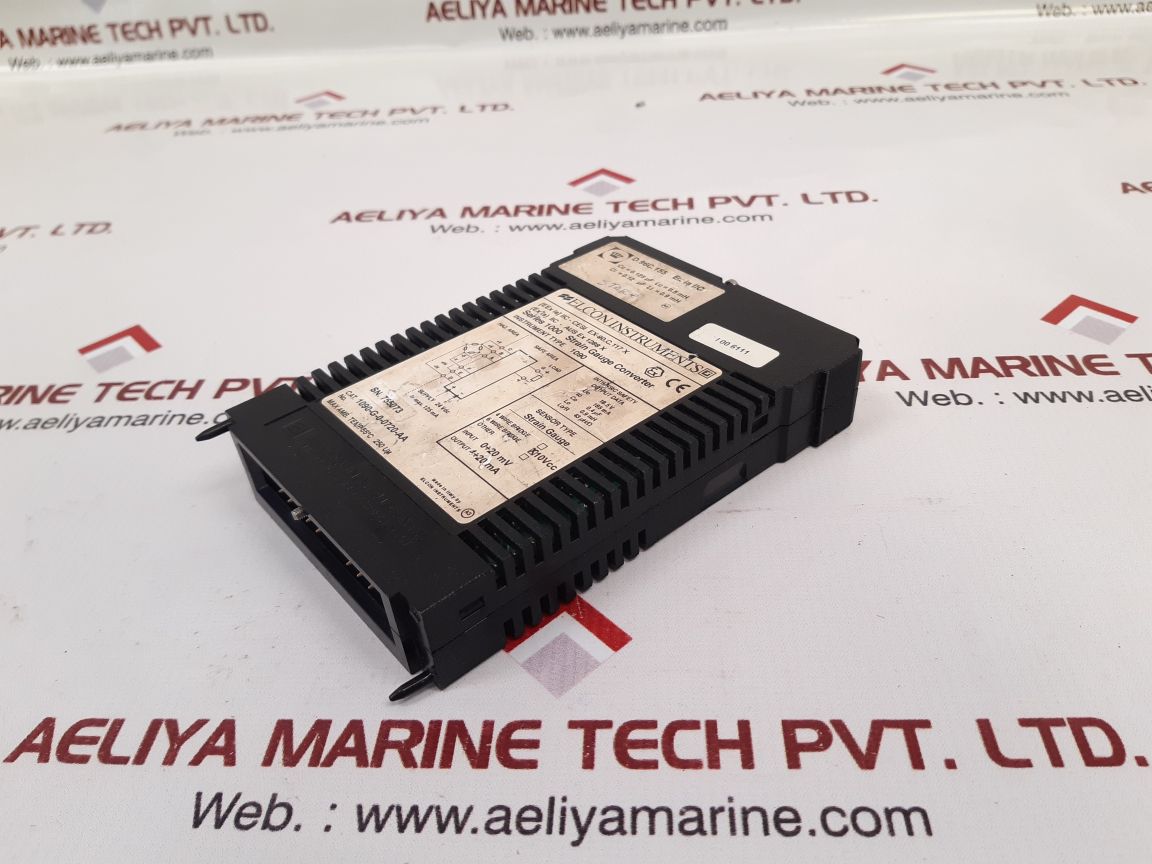

ELCON INSTRUMENTS 1090-G-0-0720-AA STRAIN GAUGE CONVERTER SERIES 1000
ELCON INSTRUMENTS
CAT NO.: 1090-G-0-0720-AA
MAX AMB. TEMP. 55°C 250 UM
[EEX IA] IIC-CESI EX-90.C.117 X
(EX IA) IIC-AUS EX 1288 X

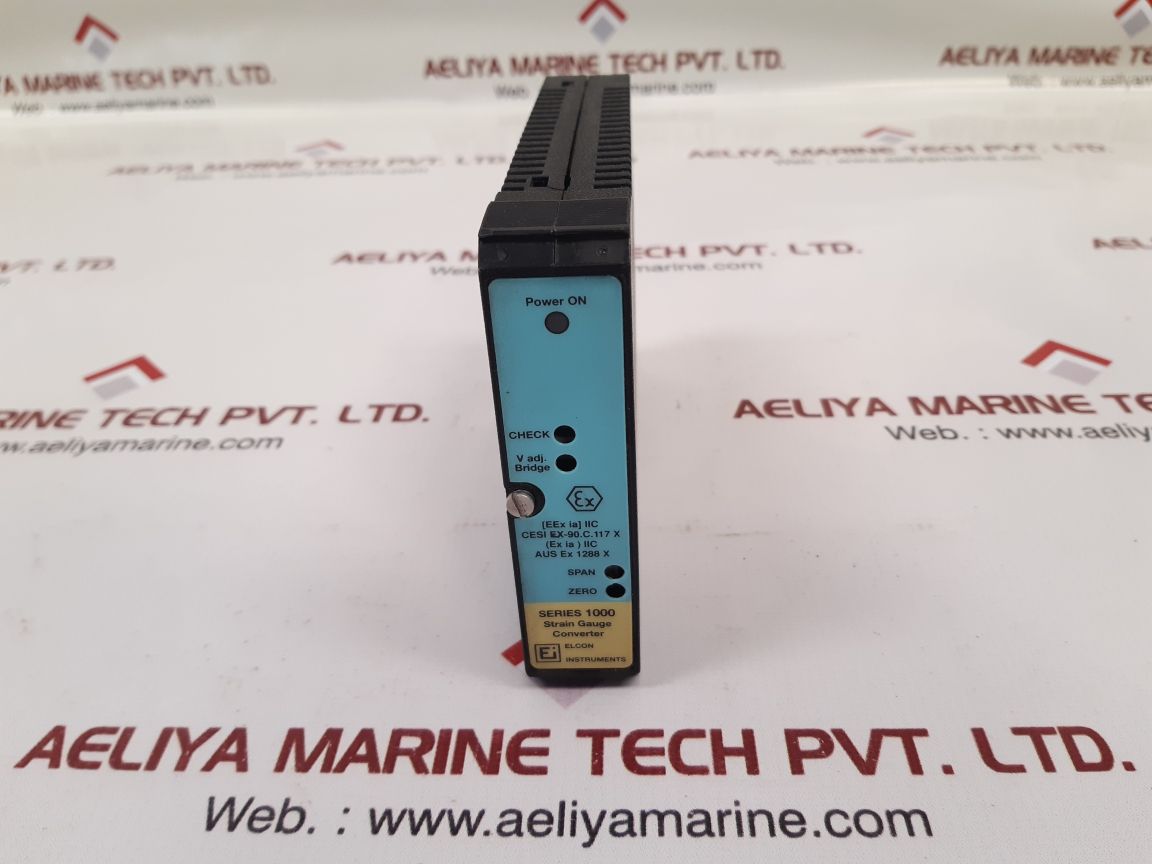

SERIES 1000 STRAIN GAUGE CONVERTER
INSTRUMENT TYPE 1090
INTRINSIC SAFETY OUTPUT DATA
UO 18.5V
IO 185 MA
CO 0.4µF
CO 0.9 MH
LO/R 43µH/Ω
SENSOR TYPE STRAIN GAUGE
6 WIRE BRIDGE 10 VCC
INPUT 0÷20 MV
OUTPUT 4÷20 MA
D.96C.155 EX IA IIC
CC=0.125µF LC=0.5 MH
CI=0.12µF LI=0.9MH

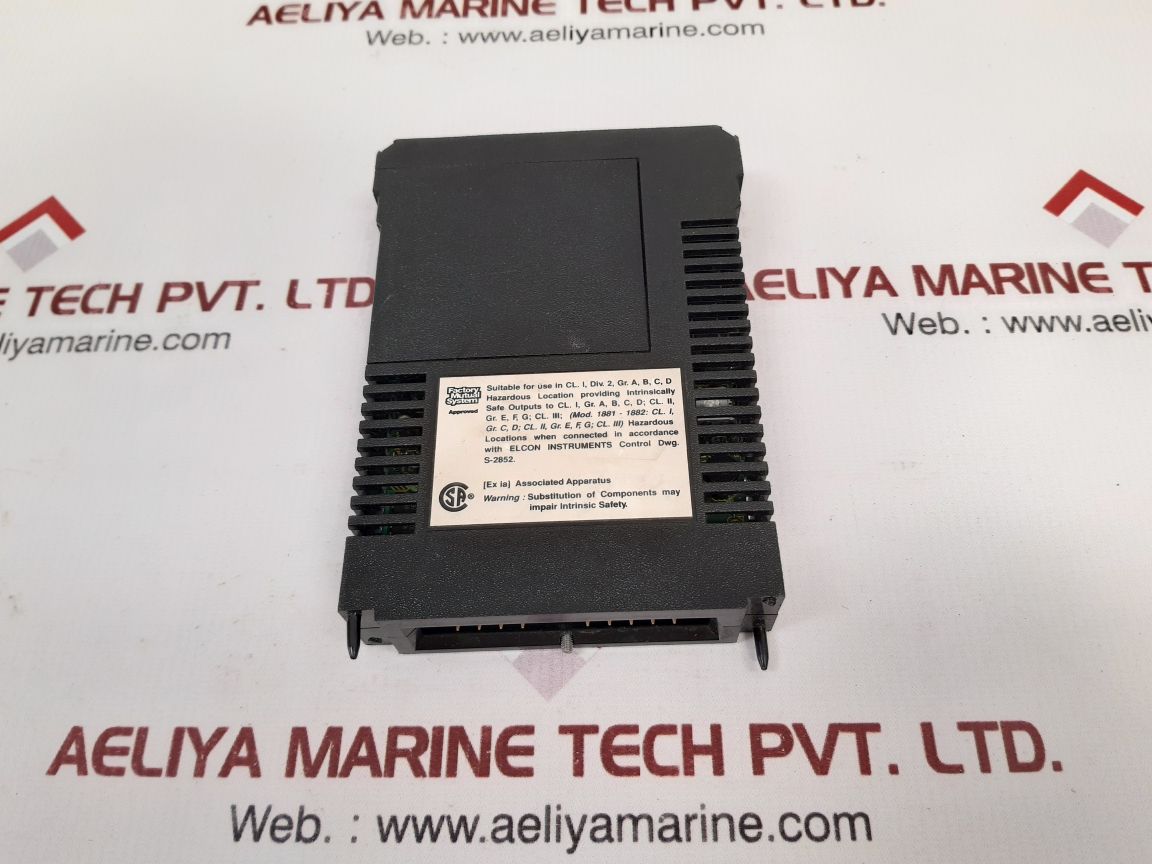

CL. I, DIV. 2, GR. A,B,C,D
CL. II, GR. E,F,G;
CL. III
SUPPLY 24 VDC
IS MAX. 125 MA
MADE IN ITALY BY ELCON INSTRUMENTS
WEIGHT : 230 GM
CONDITION : USED 1 PCS
REF NO : 32002
