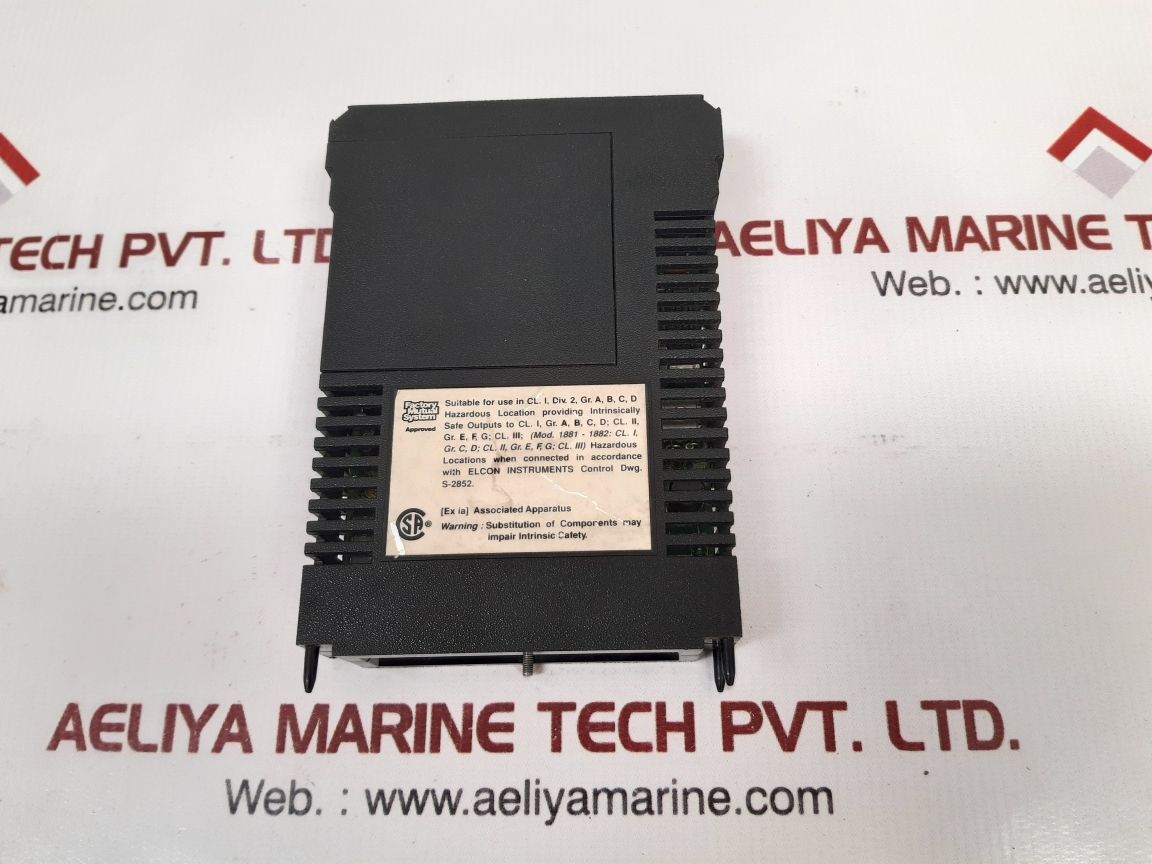

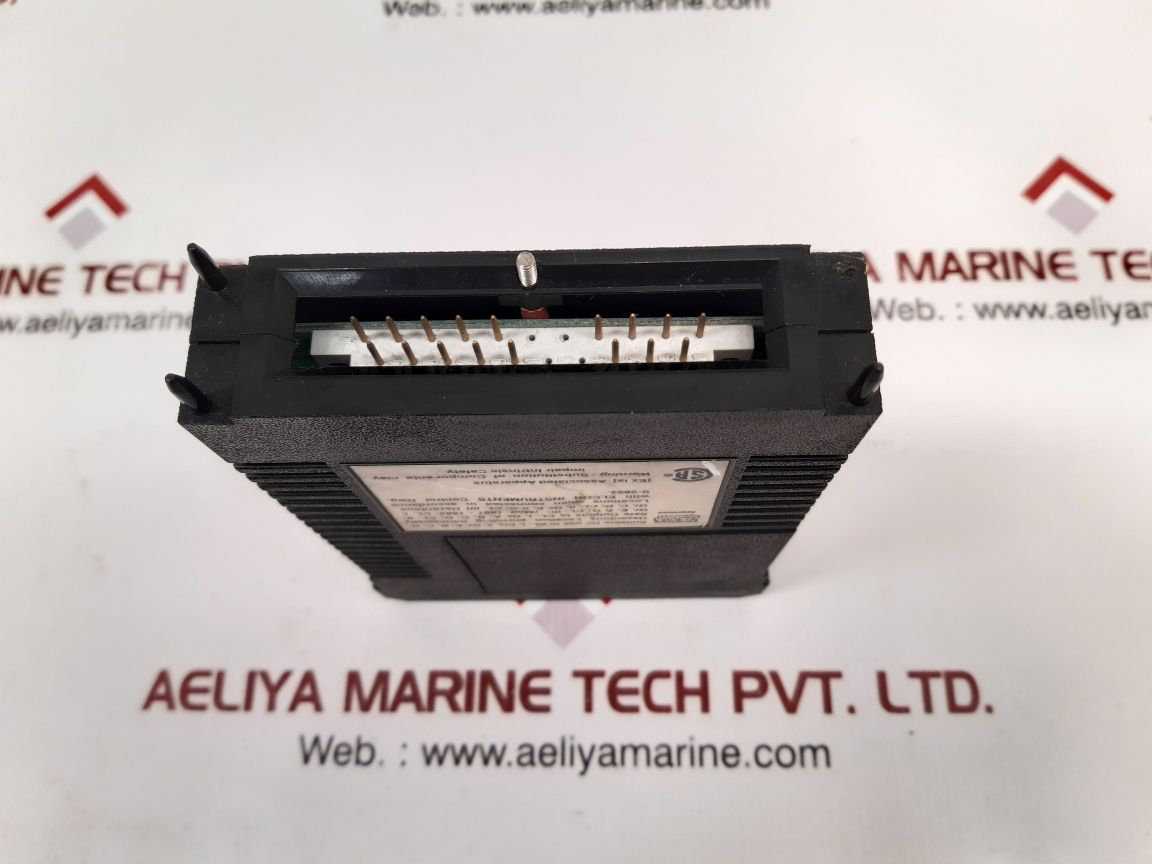

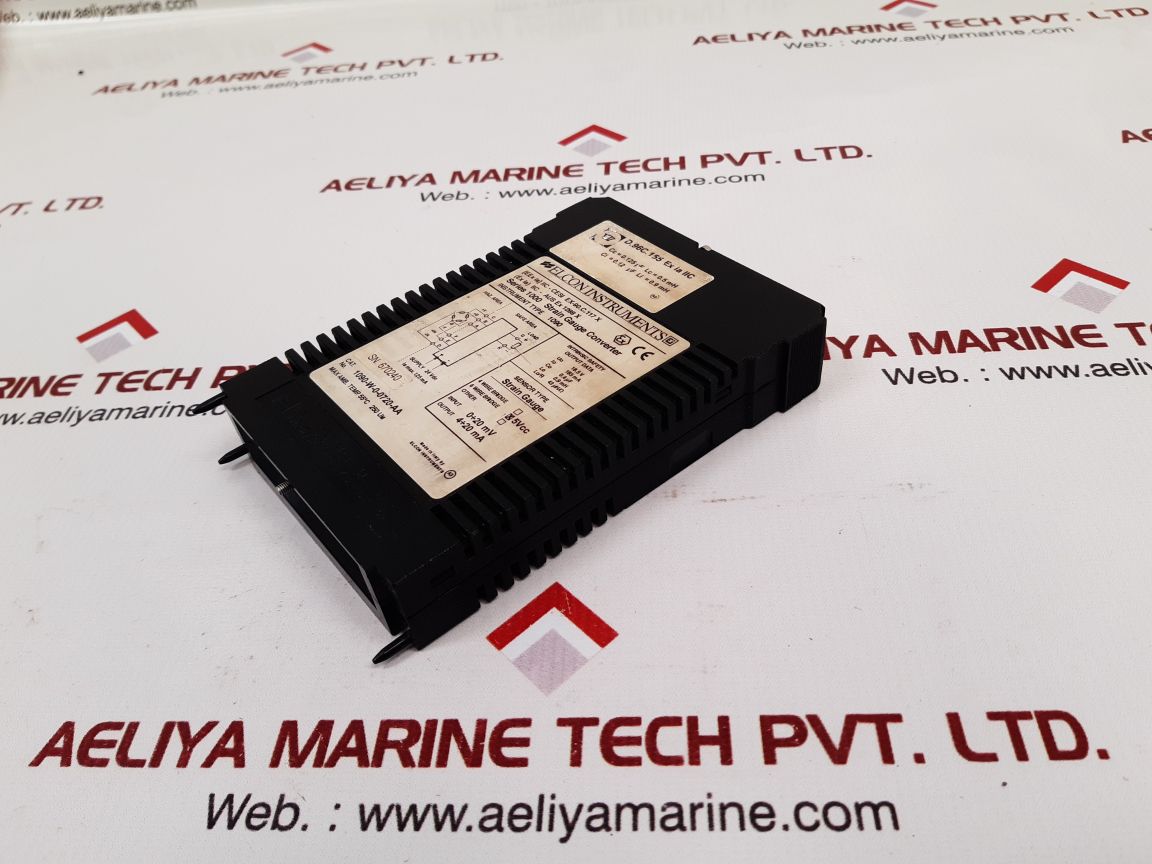

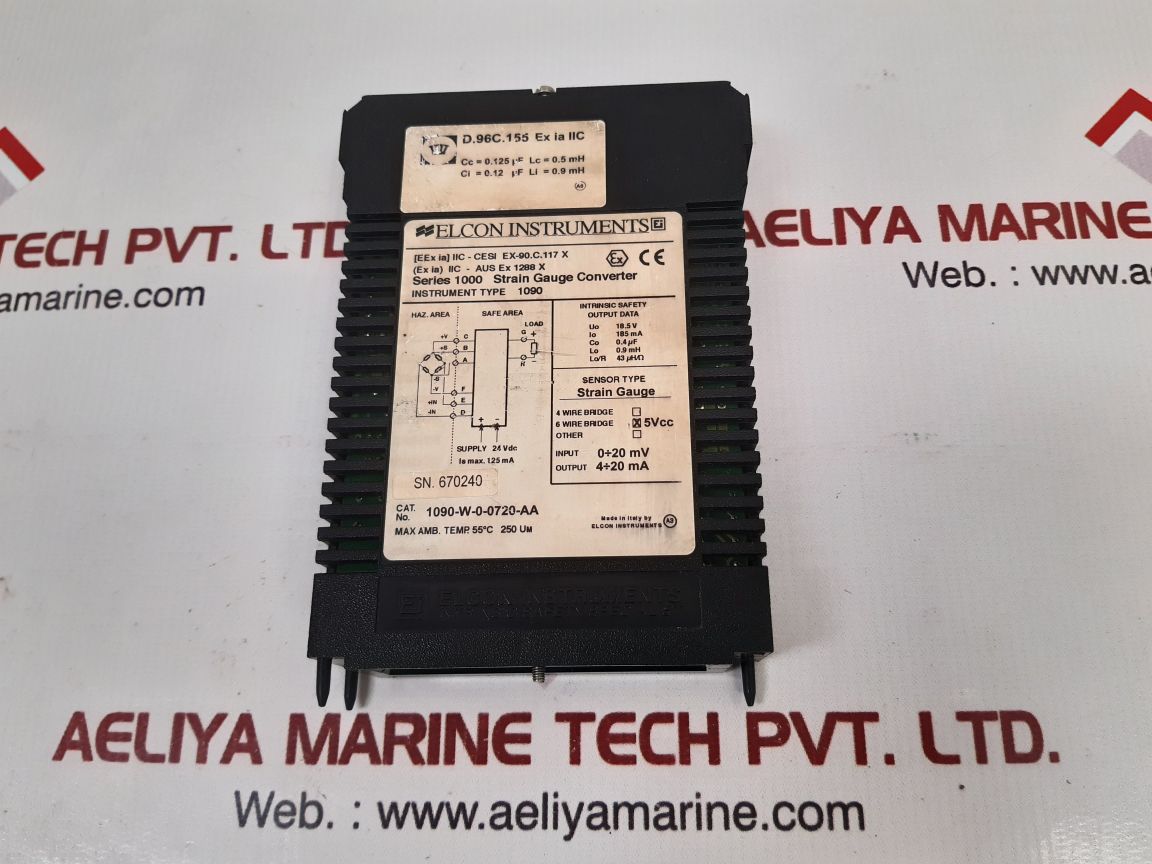

ELCON 1090-W-0-0720-AA STRAIN GAUGE CONVERTER
ELCON INSTRUMENTS
INTRINSIC SAFETY SPECIALIST
SERIES 1000
STRAIN GAUGE CONVERTER
INSTRUMENT TYPE 1090
CAT. NO.: 1090-W-0-0720-AA
MAX. AMB. TEMP. 55°C
250 UM
[EEX IA] IIC-CESI EX-90.C.117 X
(EX IA) IIC-AUS EX 1288 X
INTRINSIC SAFETY OUTPUT DATA:
UO 18.5 V
IO 185 MA
CO 0.4µF
LO 0.9 MH
LO/R 43 µH/Ω
SENSOR TYPE
STRAIN GAUGE
6 WIRE BRIDGE 5 VCC
INPUT: 0÷20 MV
OUTPUT: 4÷20 MA
D.96C.155 EX IA IIC
CC= 0.125 µF
LC= 0.5 MH
CI= 0.12 µF
LI= 0.9 MH
CL.I, DIV. 2, GR. A,B,C,D
CL. II,E,F,G;
CL. III
MADE IN ITALY
WEIGHT : 230 GM
CONDITIN : USED 1 PCS
REF NO : 31918
