ALANG – SOSIYA SHIP RECYCLING YARD
MACHINERY DETAILS NEWS 1829 April 2022
——————————————–

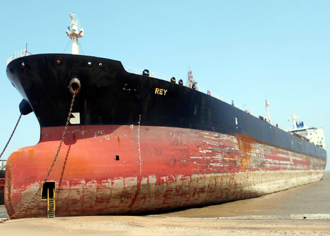

MACHINERY BEACHED AT ALANG – SOSIYA SHIP RECYCLING YARD FOR DEMOLITION PURPOSE
Main Engine
Make: Doosan Engine Co. Ltd.-Man B&W
Type : 5S60MC
No. Of Cylinder: 5
Specified Maximum Continuous 13900 Bhp At 105 Rpm
Turbocharger
Make : Man B&W
Type : TCA77-20025
Rpm : 14100
Temp. : 500 C
Governor
Make : Kongsberg-Electric Actuator (Hydraulic System)
Type: ELAET-001
Part No. : 3900047
Oil Mist Detector
Make : Graviner
Type : MK-6
Aux Blower
Make : Tae-II Blower Mfg. Co. Ltd.
Model : TBCA-056E-5526
Cap. : 2.08-4.0 M3/Sec
Pressure : 571-327 mmAq
Dens. : 1.225-2.1 Kg/M2
Rpm : 3560
Volt : 440
Hz : 60
Gas Temp. : 15 C
Aux Blower Ele. Motor
Make : ABB Marine Motors
Type : M2QA-225M2A-B5
Kw : 55
Volt : 440
Hz : 60
Rpm : 3558
Amps : 39-86
Turning Gear
Make : Woo Am Machinery Ind. Co.
Type : WA-WT-2500
Gear Ratio : 1:1167
Input : Kw-6.7 Rpm-1170
Output : Rpm-1.028
Torque : Max.-4200 Kg-M Mini-2500 Kg-M
Diesel Generator
Make : Wartsila
Type : 6L20
No. of, Cylinders : 6
Specification No. : 173235
Kw : 1020
R/S : 15
Rpm : 900
D.G. Turbocharger
Make : ABB
Type : TPS52-E01
Rpm : 832-876
Temp. : 620-650
D.G. Governor
Make : Woodward
Type : 3161
Part No. : 8540-645
D.G. Alternator
Make : Hyundai Electric Engineering Co. Ltd. (License: Siemens)
Type : HFC6-564-84E
Kva : 1125
Volt : 450
Amps : 1443.4
Rpm: 900
Hz : 60
Emergency Diesel Generator
Make : Cummins Engine Company Inc.
Model : 6CT8.3-D(M)
Kw : 140
Hp : 188
Rpm : 1800
Emergency Diesel Generator Alternator
Make : Stamford
Type : UC.M274F1
Kva : 150
Volt : 450
Amps : 192.5
Rpm : 1800
Hz : 60
Air Compressor
Make : Sperre
Type : HV2/200
Cap. : 136 M3/Hr.
Air Pressure : 30 Barg
Speed : 875 Rpm
Power : 25 Kw
Air Compressor Electric Motor
Make : Siemens
Type : 1LA25538AB60
Kw : 22-26.5
Volt : 400-460-690
Amps : 26-44.5-46.5
Rpm : 725-875
Hz : 50-60
Air Dryer
Make : Keumsung Precision Ind. Co. Ltd.
Model : KRD-150N
Cap. : 120 Nm3/Hr.
Operating Pressure : 7.0 Kgf/Cm2
Design Pressure : 9.9 Kgf/Cm2
Volt : 220
Hz : 60
Screw Air Compressor
Make : Tamrotor Marine Compressors As
Type : EMH21-8 EWNA
Cap. : 3.34 M3/Min.
Max. Pressure : 8 Bar
Motor Power : 22 Kw
Volt : 440
Hz : 60
Breathing Air Compressor
Make : Bauer Kompressoren
Type : JII-E
Vol.: 0.100 M3/Min
Free Air Del. : 3.5 Scfm
Pressure : 330 Bar
Max. Work. Pres. : 4700 Psig
Rpm : 2300
Kw : 2.2
Fresh Water Generator
Make : Alfa Laval
Type : JWSP-26-C100
Cap. : 30 M3/24 Hr.
Fresh Water Generator Salinity Indicator Penal
Make : Alfa Laval
Type/Model : DS-20
Fresh Water Generator Ejector Pump
Make : Alfa Laval
Type : CNL80/80-200
Oily Water Separators
Make : DVZ Services Gmbh
Type : DVZ-5000 PC/VC
Cap. : 5 M3/Hr.
Volume : 665 Liter
Operating Pressure : 1.5-0.5 Bar
Test Pressure : 4.0-1.5 Bar
Oily Water Separators Penal
Make : Deckma Hamburg
Type : OMD-2005
Art No. : 75500
Lubricating Oil Purifiers (Oil Filter)
Make : Alfa Laval
Type : S-825
Max. Speed (Bowl): 10668 Rpm
Speed Motor Shak : 3600 Rpm
Motor Power : Kw-7.5 Hz-60
Lubricating Oil Purifiers (Oil Filter) EPC Penal
Make : Alfa Laval
Type : EPC-50
Heavy Fuel Oil Purifiers (Oil Filter)
Make : Alfa Laval
Type : S-84S
Max. Speed (Bowl): 9220 Rpm
Speed Motor Shaft : 3600 Rpm
Motor Power : Kw-9.5 Hz-60
Heavy Fuel Oil Purifiers (Oil Filter) EPC Penal
Make : Alfa Laval
Type : EPC-50
Moatti Filter
Make : Alfa Laval-Moatti Snc
Filter Model : X280D-404A08
Max. Working Pressure : 12 Bar
Max. Working Temp. : 100 C
Moatti Filter
Make : Alfa Laval-Moatti Snc
Filter Model : L280-261-A-07
Max. Working Pressure : 12 Bar
Max. Working Temp. : 100 C
Small Chilling Compressor
Make : Sabroe
Type : F-3
Chilling Compressor
Make : York Refrigeration
Type : SMC-106S
Speed : 1500 Rpm
Swept Volume : 330 Rpm
Working Pressure : 26 Bar
Test Pressure : 42/27 Bar
Air Condition Unit
Make : Century Corporation
Model : MP-G7.5HF3
Plate Heat Exchanger
Make : Alfa Laval
Type : M10-MFM
Plate Heat Exchanger
Make : Alfa Laval
Type : M20-MFM
Over Head Crane (Engine Room)
Make : Dongwoo Machinery & Engineering Co. Ltd.
Cap. : SWL 4 Ton
Provision Hydraulic Deck Crane
Make : Mac Gregor
Cap. : SWL 4 Ton-2.8/14.0 M
Provision Hydraulic Deck Crane
Make : Mac Gregor
Cap. : SWL 5 Ton-2/10.0 M
Hose Handling Deck Crane
Make : Mac Gregor
Type : HH500-1521
Cap : SWL 15 Ton-4,2/21.0 M
Minimum Radius-Min. Ausladung 4.2 M-15 Ton
Maximum Radius-Max. Ausladung 21.0 M-15 Ton
Horiz Jib/Horiz Ausladung 21.0 M-15 Ton
Motor Power : Volt-440 Hz-60
Steering Gear
Make : Yoowon Ind. Ltd.-Mitsubishi Heavy Industries Co. Ltd.
Type : YDFT-125-2
Steering Gear’s Hydraulic Pump
Make : Mitsubishi Heavy Industries Co. Ltd.
Type : 1V-FH2B-MK-RFBLA20D11
Hydraulic Power Pack
Make : Frank Mohn As
Type : A-31613
Power Pack Attach Hydraulic Pump (With Electric Motor & Diesel Engine)
Make : Brueninghaus
Hydromatik Type : HA4VSO-500-DP/30R-PPH13N00-S1068
Part No. : 02414589
Power Pack Unit’s Hydraulic Pump Attach Diesel Engine
Make : Cummins Engine Company Inc.
Model : KTA19-D(M1)RAD-570
Hp:630
Rpm:1800
Power Pack Unit’s Hydraulic Pump Attach Electric Motor
Make : ABB
Type : M2CA-355LB-4B35
Kw : 390
Volt : 440
Amps : 600
Rpm : 1788
Hz : 60
Deck Windlass Anchor Hydraulic Winch
Make : KoCks Bremen
Type : 1906-8816-18
Deck Mooring Hydraulic Winch
Make : Kocks Bremen
Type : 1906-8816-20
